Description
🎁 FREE BONUS INCLUDED

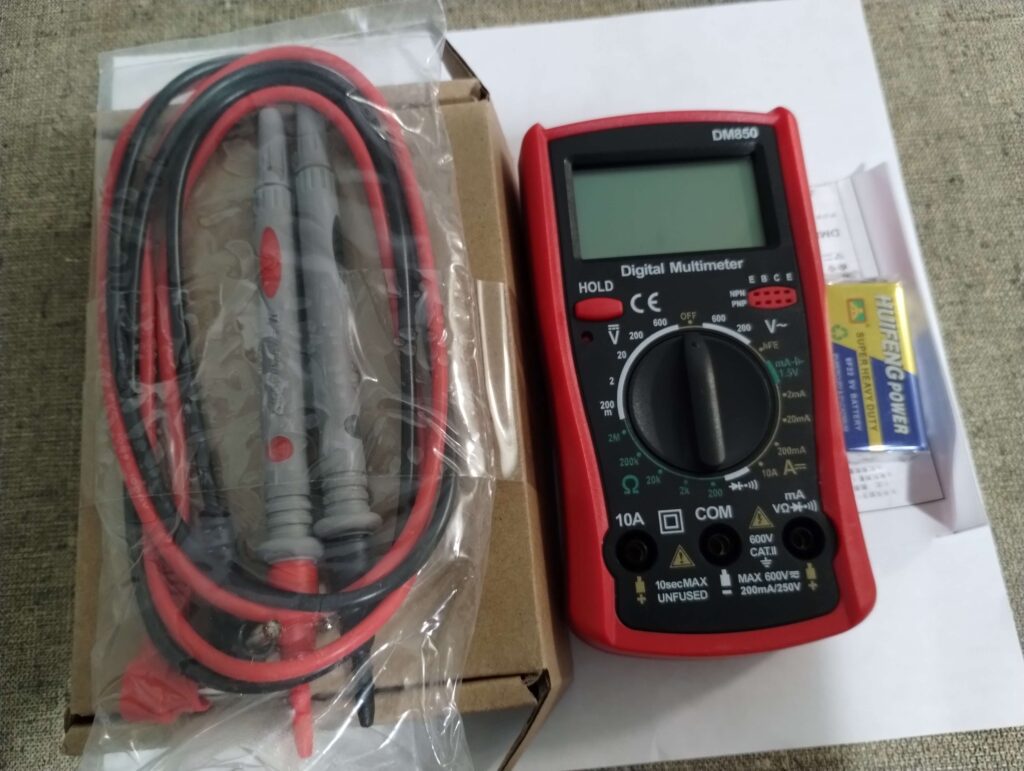

Every Tach purchase includes a FREE Digital Multimeter (see image below).
The Auto-Feed Plus Special is a programmable wood chipper feed controller designed for hydraulic feed systems and compatible with many commercial wood chippers.
Limited time offer———–
Auto-Feed Plus Special 12 or 24vdc programmable Feed Controller works on any Hyd. fed wood chipper
Same great features at a reduced budget price
Designed by Kurt Snider
Hand assembled hand soldered the old school way USA
Built with quality with the minimum of parts design
2oz. Copper double sided, PCB made in USA

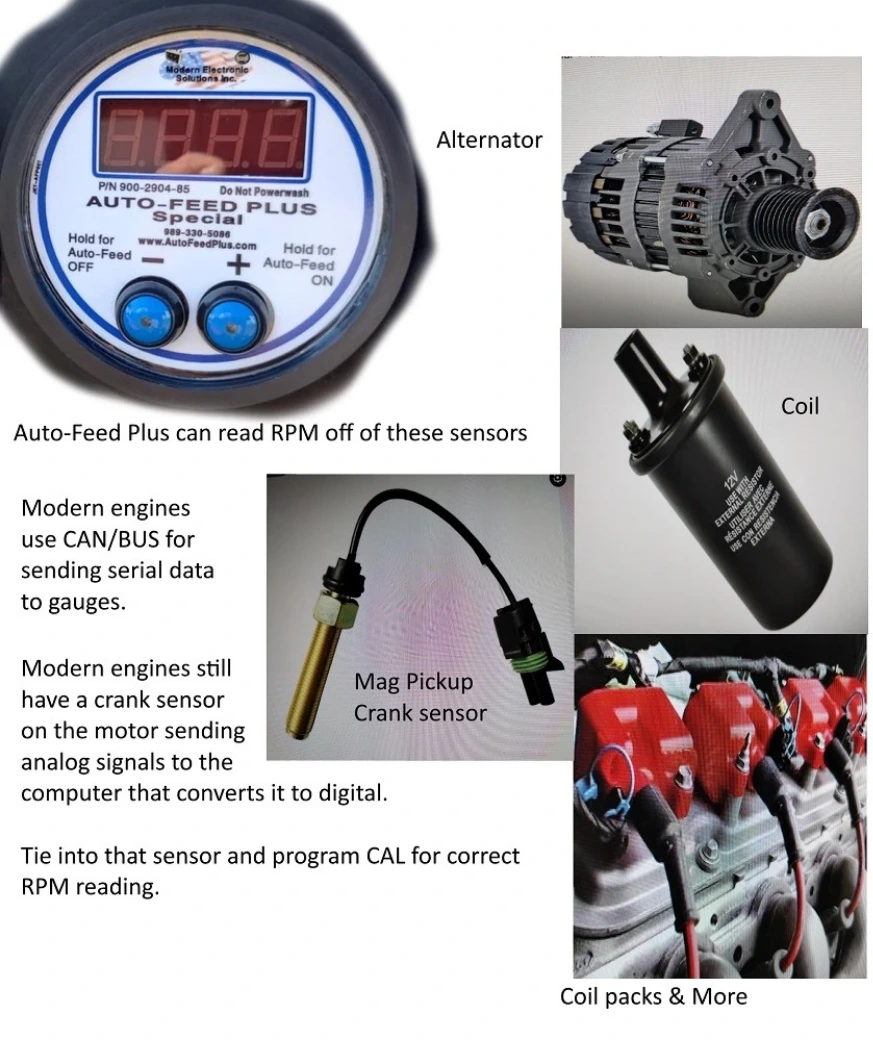

Auto-Feed Plus can read RPM signals from the following types of sensors:

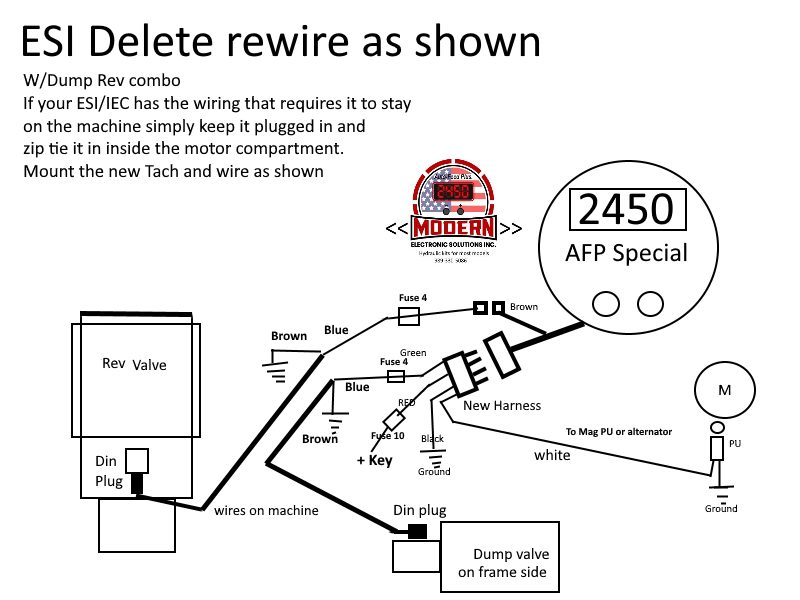

Have an ESI/IEC gauge? Rewire as shown:
Warranty:
1 yr limited warranty US sales only to original buyer
7 days a week limited phone tech support programming only (est) zone
Kit includes:
1 Tach
1 rubber mount ring
3 fuses

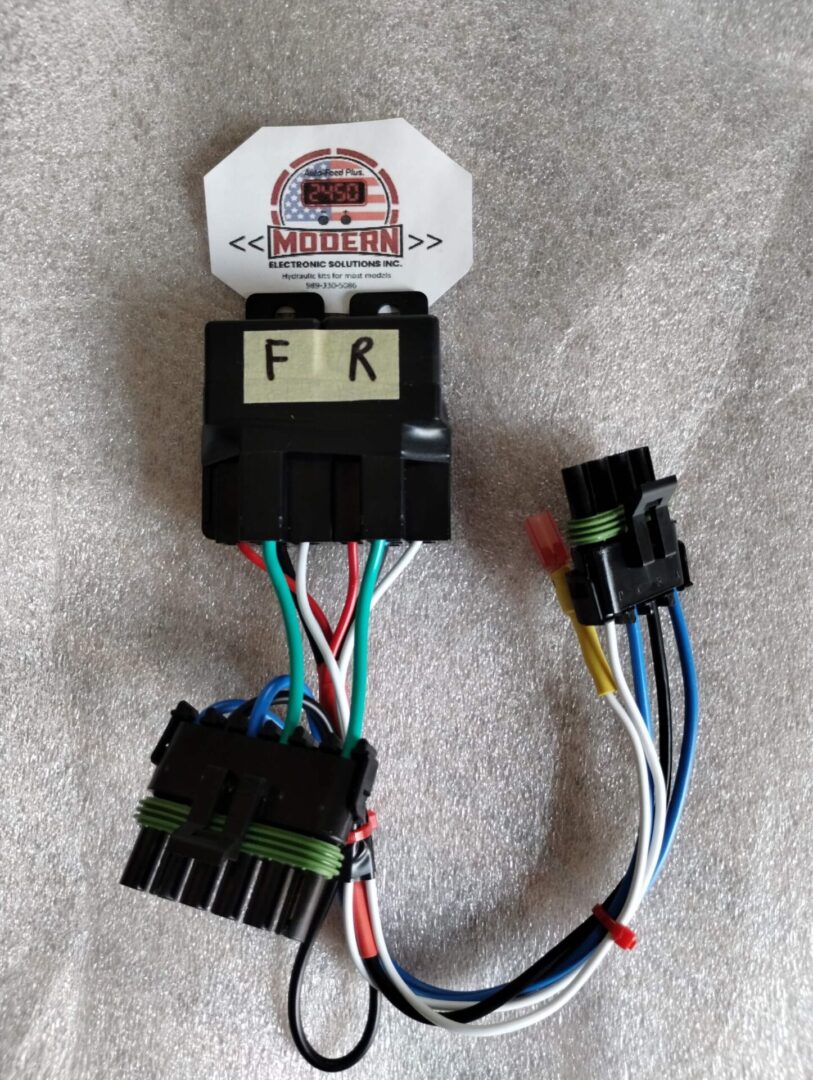

1 16″ fused harness
1 Manual
1 Bracket
2 locknuts
No Returns
call ask questions 7 days a week I respond

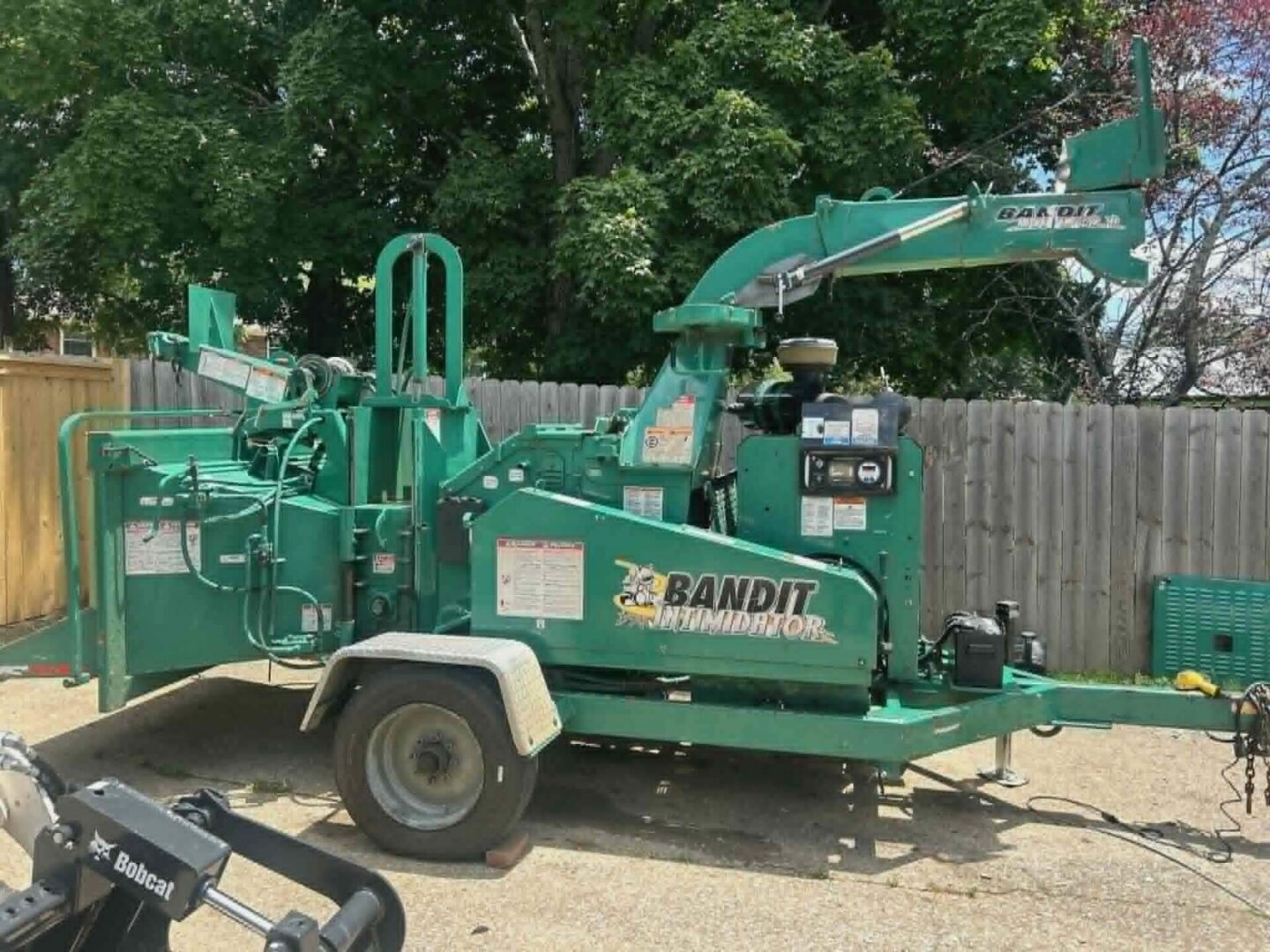

Customer Installation Photo

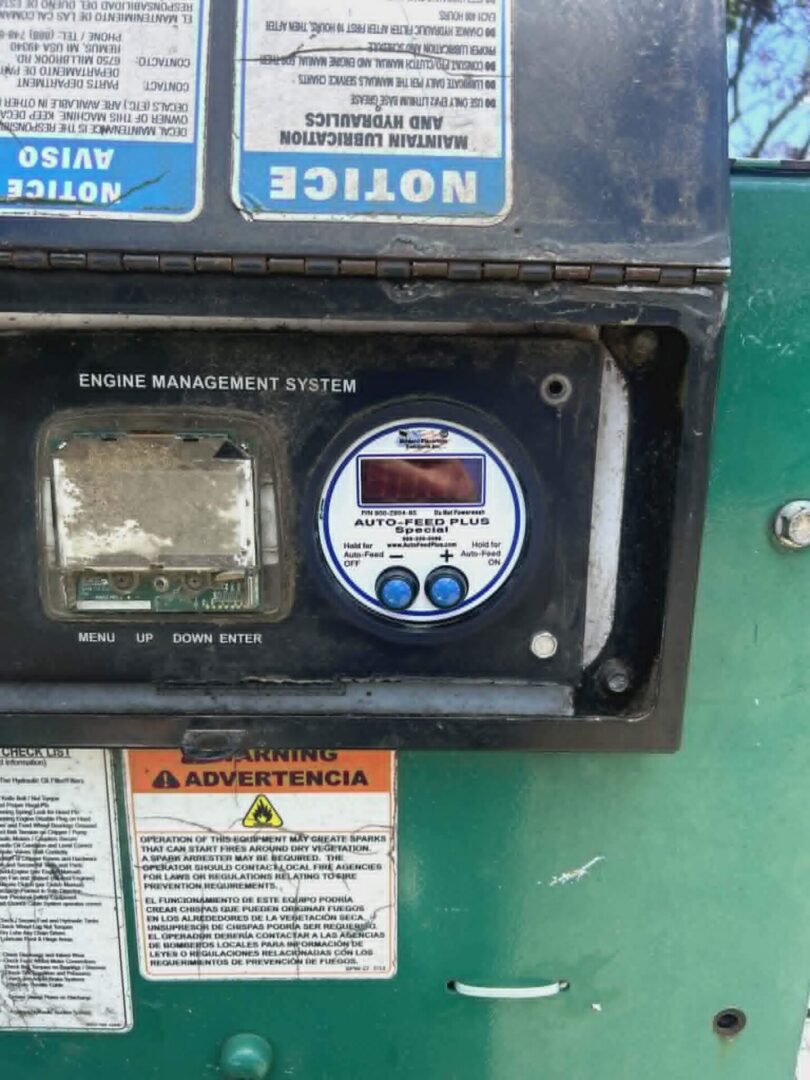

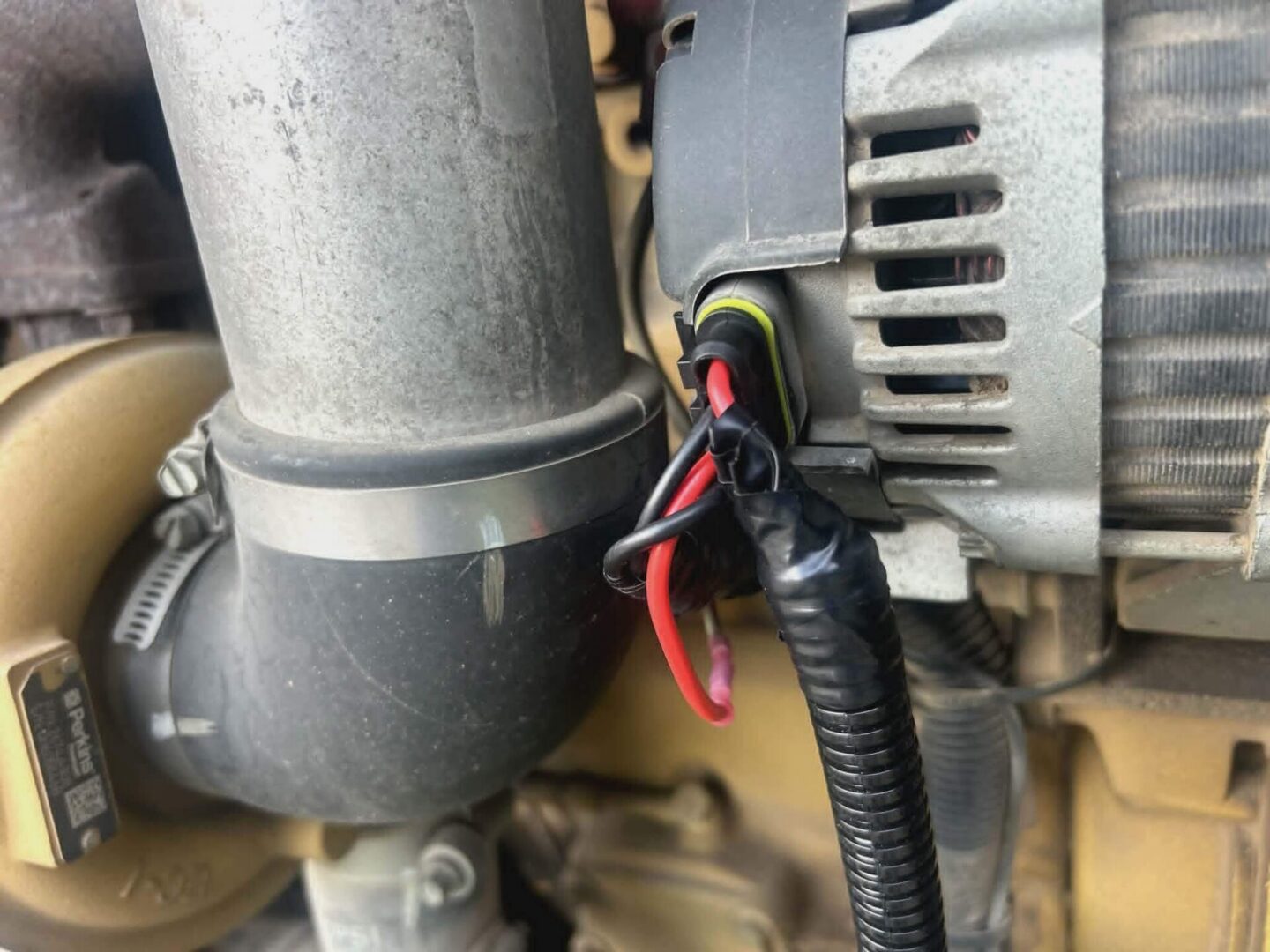

Customer Installation Example: AFP Tach Using Alternator Signal
For machines equipped with the IEC tach system, this is a simple installation method using the alternator signal.

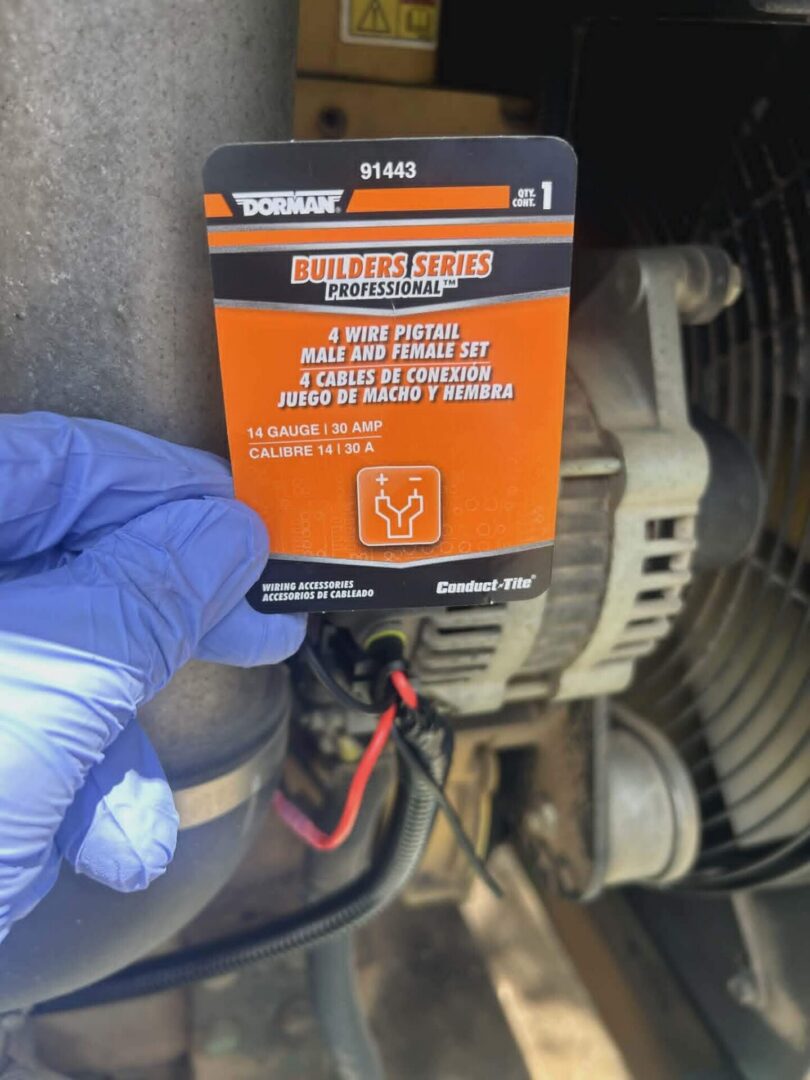

The customer used an alternator plug adapter to connect the Auto-Feed Plus tach signal.
After installation, program the tach to CAL 20.1 for proper RPM reading.
Installation Steps

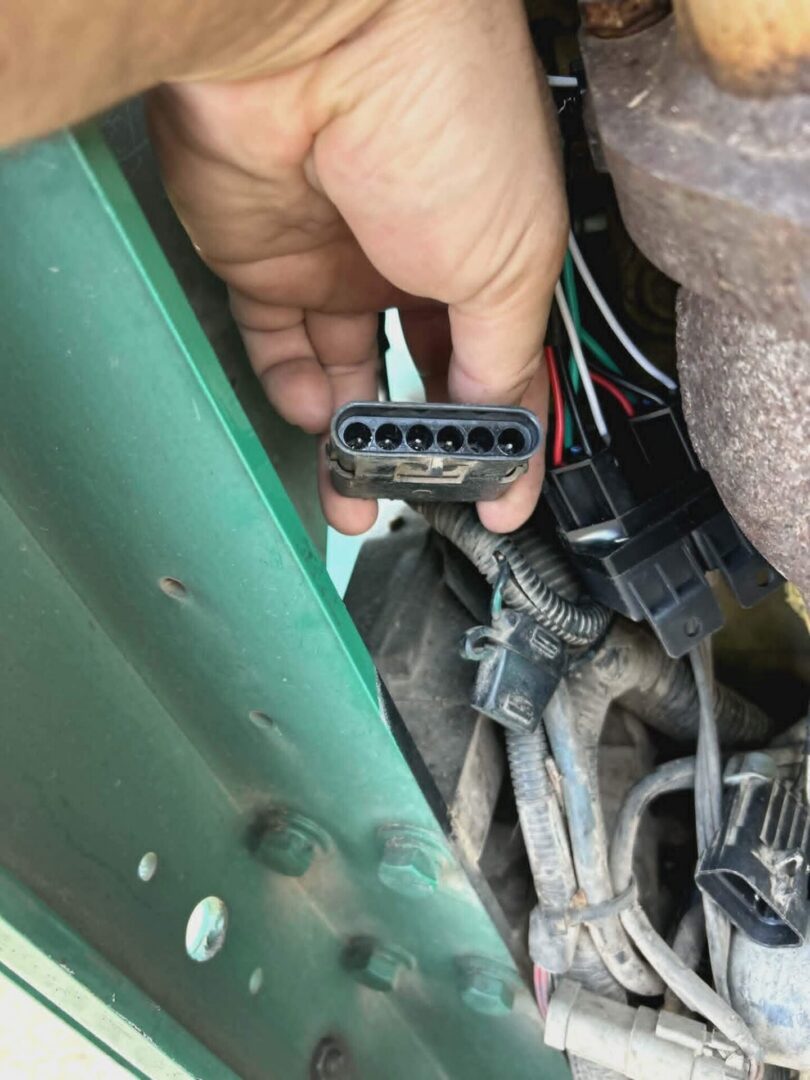

- Locate the alternator connection on the machine.
- Install the correct alternator plug adapter.
- Connect the signal wire to the Auto-Feed Plus tach.
- Set tach calibration to CAL 20.1.
- Confirm RPM reading before operation.
Note: Installation may vary depending on machine model and alternator configuration.
